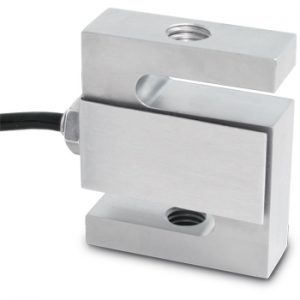

STG SERIES TENSION LOAD CELLS - บริษัท เคเอ็มยู เทคโนโลยี จำกัด

The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).
IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.

Tension or Compression approved load cells for the weighing hoppers, tanks, scales with levers, and with other weighing devices.

CAPACITIES (kg): 100, 500, 1000.

OIML R60. C3 precision class.

17-4 PH stainless steel. IP67 protection.

MAIN FEATURES

Minimum load cell verification interval:
Vmin = EMax / 10.000 (for STG500 and STG1000 model);
Vmin = EMax / 7.000 (for STG100 model)
Maximum number of verification intervals: nLC = 3000
Combined error 0,03% of Full Scale Output (F.S.)
Non-Repeatability: 0,01% F.S.
Full Scale Output: 3mV/V +/- 0,08%
Temperature effect on zero: 0,017% /°C
Temperature effect on full scale output: 0,014% /°C
Compensated Temperature Range: -10°C/+40°C
Operating Temperature Range: -35°C/+65°C
Creep error after 30 minutes: 0,02% F.S.
Maximum tolerated excitation voltage: 18 VDC
Input Resistance: 430 ± 60 Ohm
Output Resistance: 350 ± 3.5 Ohm
Zero balance: +/-1% F.S.
Insulation Resistance: >5000 MOhm
Safe Overload: 150% F.S.
Ultimate Overload: 300% F.S.
4-wire shielded cable, 6m long, 5 mm diameter
