Kit for assembling weighbridges

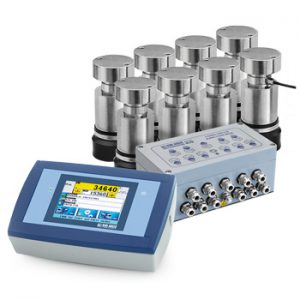

Weighbridges kit made up of 3590ET touch screen weight indicator with AF03 software for weighbridges, 6 or 8 stainless steel IP68 "RCA" analogue load cells or "RCD" digital load cells, complete with galvanized steel oscillating resting joints and junction box with surge arresters.

---

Touch screen indicator, specific for weigh bridge.

---

Junction box with removable terminals and integrated surge arres.

---

ANALOGUE or DIGITAL load cells in stainless steel.

---

CAPACITY: 180t, 240t.

---

OIML R60. C4 precision class.

---

Load cell height 170mm (including cups height).

---

"Anti rat" armoured cable for each load cell.

"RCA" analogue or "RCD" digital LOAD CELLS

C4 (4000 divisions) precision class. Made in stainless steel, IP68 protection degree. Internal silicon sealing against condensation and temperature changes. 30.000 kg max capacity for each load cell. 2mV/V +/- 0,1% full scale output (analogue model). 200.000d full load capacity resolution (digital model). Combined error of Full Scale Output ± 0,017% Operating temperature range -10°C/+40°C Input resistance 815 ± 20 Ohm (analogue model). Output resistance 700 ± 5 Ohm (digital model). Safe overload 150% F.S. "Anti rat" 20 m armoured cable for each cell (analogue model). "Anti rat" 15 m armoured cable for each cell (digital model). Self-alignment articulated joints. Test certificate available upon request.

Analogue weighbridges kit made up of 3590ET touch screen weight indicator with AF03 software for weighbridges, 8 stainless steel IP68 "RCPT" analogue load cells, complete with galvanized steel oscillating resting joints and junction box with surge arresters.

---

Touch screen indicator, specific for weigh bridge.

---

Junction box with removable terminals and integrated surge arres.

---

ANALOGUE load cells in stainless/nickel-plated steel.

---

TOTAL CAPACITY: 240t (8 x 30t cells).

---

OIML R60. C3 precision class.

---

Load cell height 200mm (including cups height).

---

LOAD CELLS: 18m CONNECTION CABLE.

---

"RCPT" ANALOGUE LOAD CELLS

Minimum load cell verification interval: Vmin = EMax / 10.000 Maximum number of load cell divisions: nLC = 3000 (C3) Sensitivity: 2mV/V +/- 0,1% Temperature effect on full scale: 0,002% /°C Temperature effect on zero: 0,002% /°C Compensated Temperature Range: -10°C/+40°C Operating Temperature Range: -30°C/+70°C Creep error after 30 minutes: 0,02% F.S. Excitation voltage from 5 to 15 VDC Input Resistance: 700 ± 20 Ohm Output Resistance: 703 ± 7 Ohm Zero Balance: +/-1% F.S. Insulation Resistance: 5000 MOhm Safe Overload: 150% F.S. Ultimate Overload: 250% F.S. 4-wire shielded cable, 14m long, 5mm diameter. To view the full technical data sheet click HERE.



Kit for weighbridges made up of 8 RCPT series analogue load cells, complete with oscillating resting joints and 10 input junction box.

---

TOTAL CAPACITY: 240t (8 x 30t cells)

---

OIML R60, C3 precision class.

---

Special alloy steel body with STAINLESS steel external casing; manufactured with laser solderings.

---

Load cell height 200mm (including cups height).

JUNCTION BOX FEATURES

JB10Q junction box with glass reinforced polyester case. IP66 protection degree or IP68 protection with GELBOX option. Surge Arresters against electric discharges and disturbances.



Digital weighbridges kit made up of 3590ET touch screen weight indicator with AF03 software for weighbridges, 8 stainless steel IP68 "RCPTD" digital load cells, complete with galvanized steel oscillating resting joints and junction box.

---

Touch screen indicator, specific for weigh bridge.

---

Junction box with removable terminals and integrated surge arres.

---

DIGITAL load cells in stainless/nickel-plated steel.

---

TOTAL CAPACITY: 240t (8 x 30t cells).

---

OIML R60. C4 precision class.

---

Load cell height 200mm (including cups height).

---

LOAD CELLS: 18m CONNECTION CABLE.

---

"3590ET" INDICATOR

Touch screen, graphic, color display. ABS waterproof IP65 case. Integrated alibi memory for CE-M approved communication with printer and PC. 3 serial ports, 2 RS232 and 1 RS485 for connection to printer, repeater and PC. 2 inputs and 4 outputs. "AF03" application software suitable for vehicles weighing and weighbridges management, with input/output products check.
