“JB4PLUS”: EQUALIZED JUNCTION BOX WITH OVERVOLTAGE PROTECTION, UP TO 4 LOAD CELLS

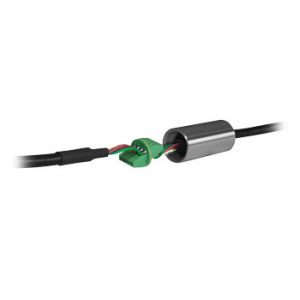

Stainless steel junction box with IP68 protection from water and dust, equipped with electronic board to join 2 load cell cable sections. The 8 screw terminal boards facilitate the cable connection. The stainless steel body ensures solidity and durability.
 |
||
|
||
|
||
|
||
|
“JB4PLUS”: EQUALIZED JUNCTION BOX WITH OVERVOLTAGE PROTECTION, UP TO 4 LOAD CELLS
Junction and equalization box JB4PLUS.
Junction box with 4 inputs and protection IP67 suitable for outdoor environments. It can be used as equalization or simple junction box of 2, 3 or 4 load cells. Screw terminal boards to facilitate the connection and signal adjustment trimmer, for an accurate and reliable equalization. The protection circuit protects from lightning and overvoltage.
|
||
|
||
|
||
|
||
|
“JBQ”: EQUALISED JUNCTION BOX, WITH UP TO 4 LOAD CELLS
IP67 junction box fitted with electronic board for junction and equalisation of 2, 3, or 4 load cells. Terminal boards with a screw for easing the connection of the load cells and the signal adjustment trimmer, for an accurate and reliable equalisation.
|
||
|
||
|
||
|
||
|
“JB4”: JUNCTION BOX WITH OVERVOLTAGE PROTECTION, UP TO 4 LOAD CELLS
Simple junction box with IP67 protection and 4 inputs equipped with electronic board for junction of the signals of 2, 3 or 4 load cells. Screw terminal boards to facilitate the connection. The protection circuit protects against lightning and overvoltage. The reduced costs make it the ideal choice for static weighing systems such as silos, tanks and big containers.
|
||
|
||
|
||
|
||
|
